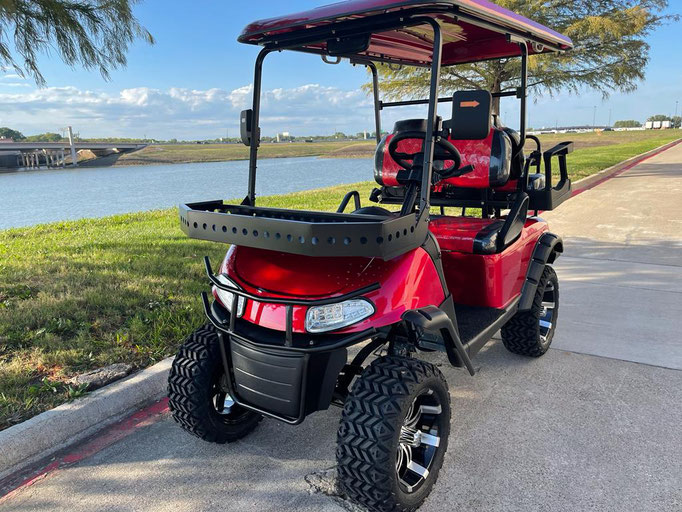

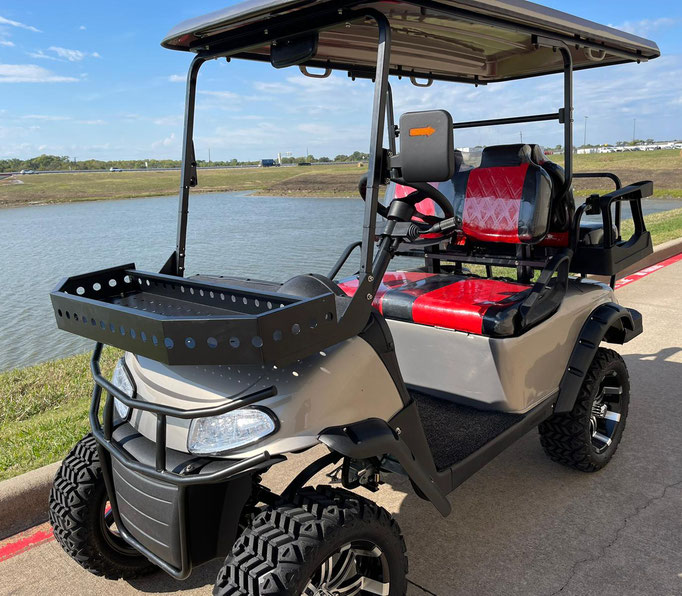

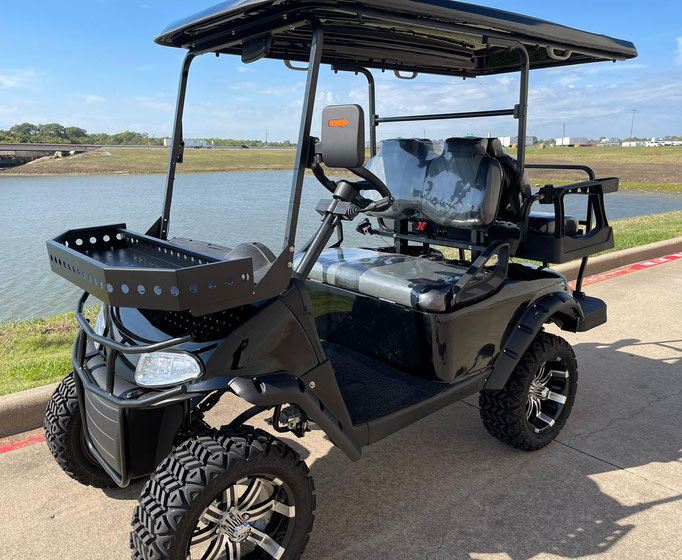

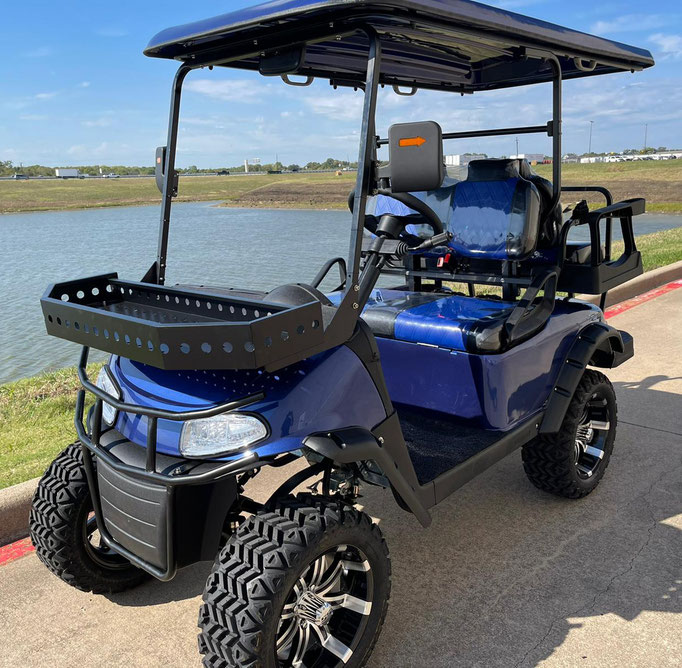

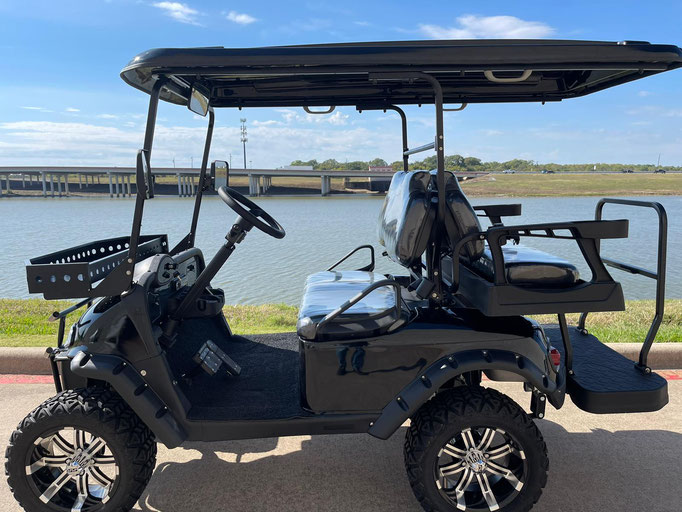

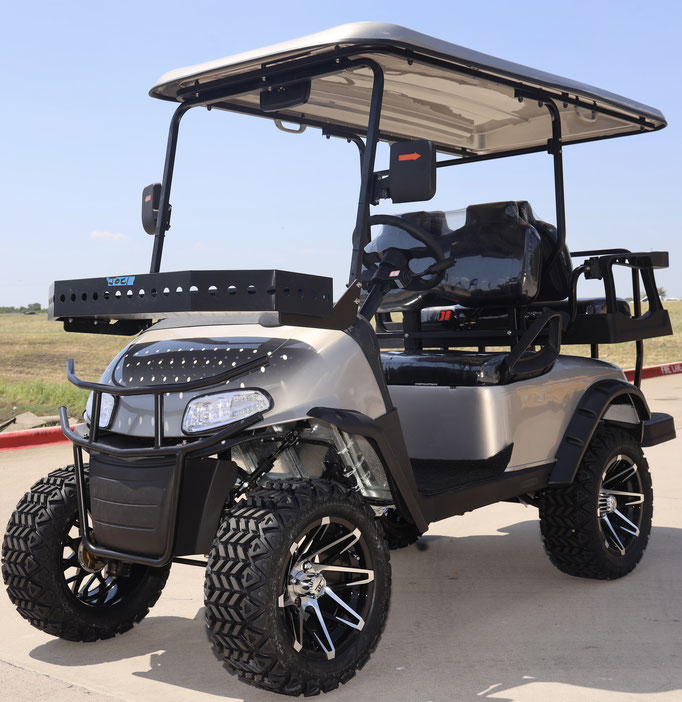

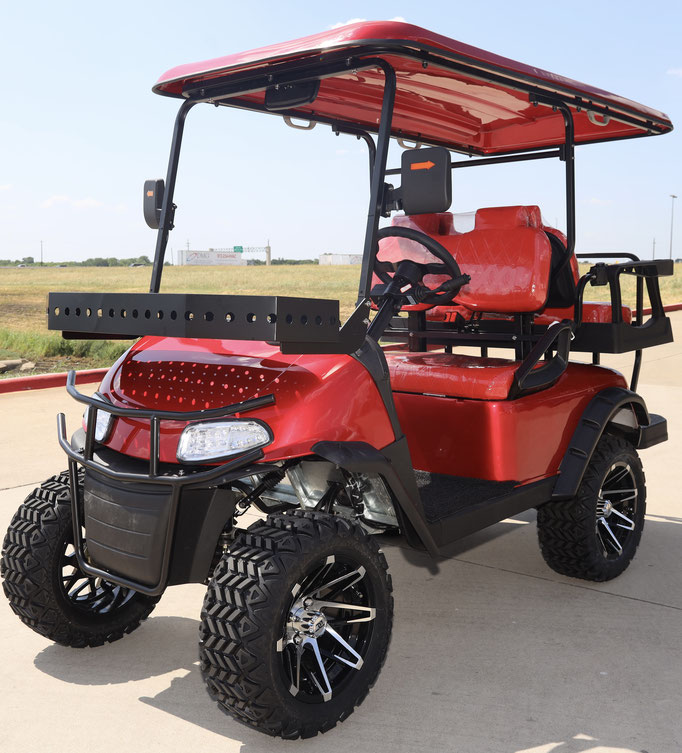

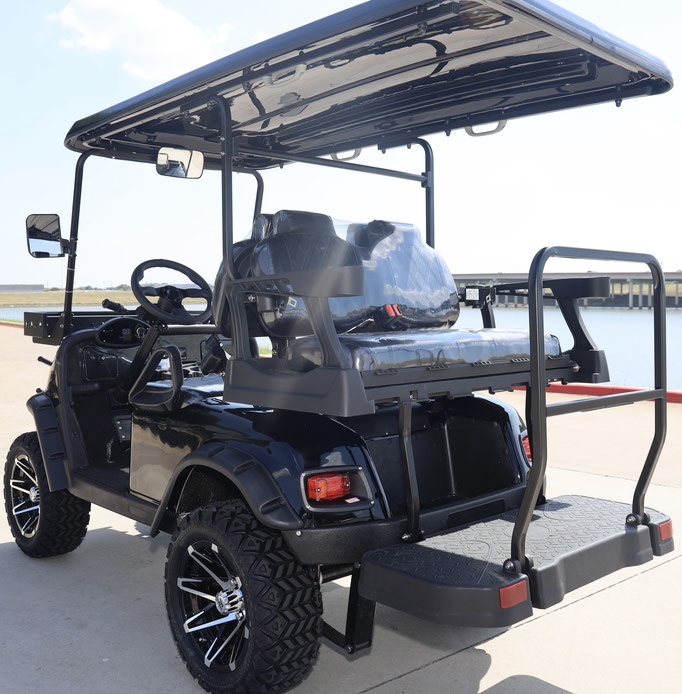

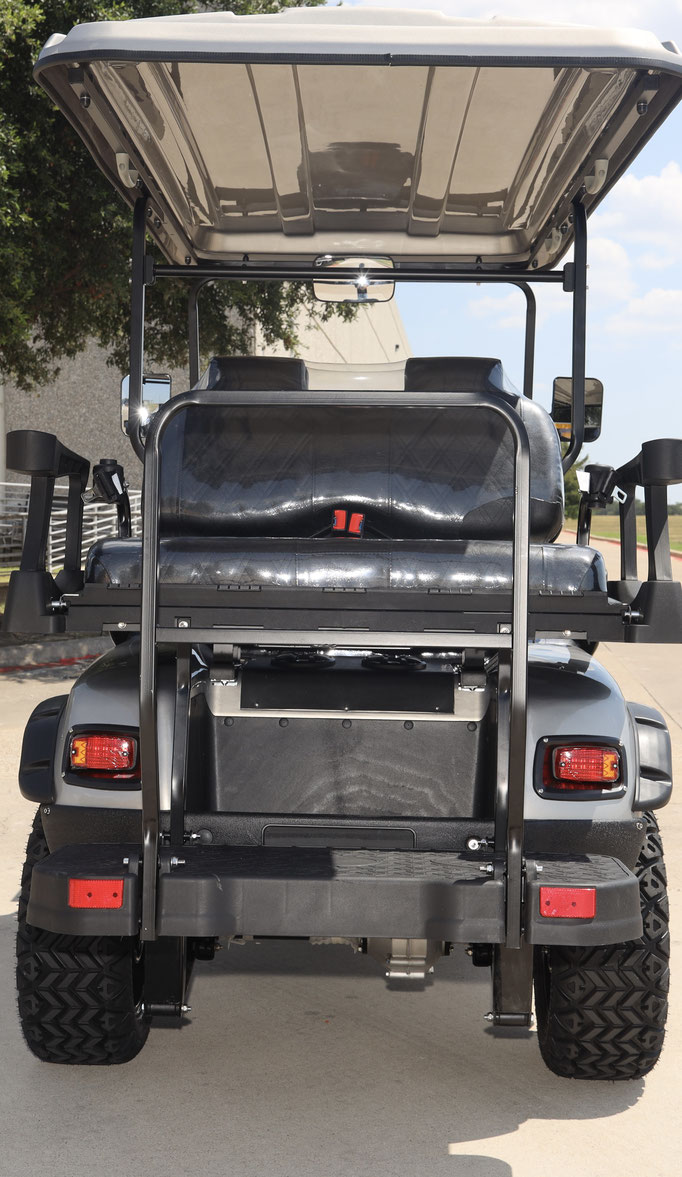

T40-Electric Golf Cart

4 Passengers Off-road Golf Cart: T401R-LD150

Colors: Black, Blue, Red, Silver

Controller: USA Curtis® brand 1266,DC 48V/350A

Battery: 48V/4000W,150A  Lead-acid battery

Chinese Chillwee®, Free maintenance 6*8V150AH

Motor: USA ADC® brand, DC 48V/4000W

Charger: On-board input 110V-240V, output 48V/25A

Windshield: 3-C passed armored glass OR DOT passed PVC foldable windshield

Roof: longer and stronger, injection molded ABS

Seats: High density sponge, thickening leather and high qualitied arm rest

Side Board: aluminum alloy with antiskid finishing

Floor Mat: skid-proof full piece rubber floor mat

Roof holder: made with iron steel material and finished with water proof coating

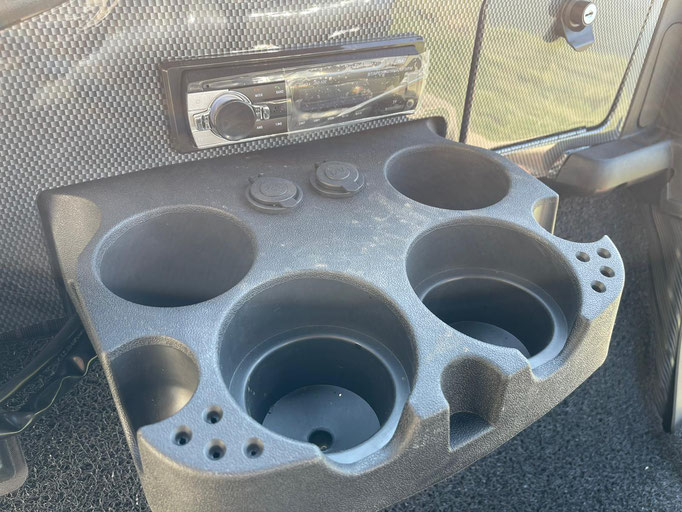

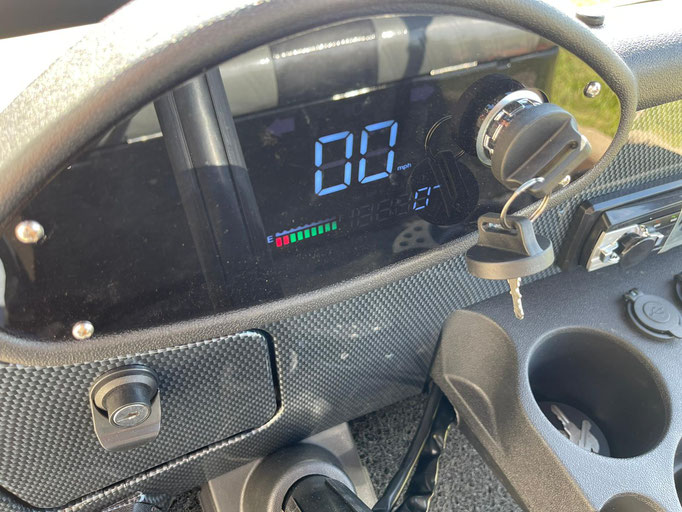

Dashboard: Include battery meter, blue-tooth MP3 player, USB charger sockets and switches

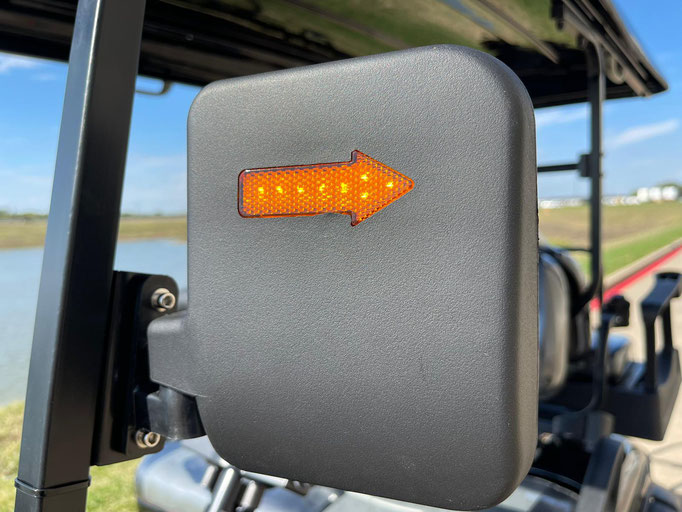

View mirror: EMARK certificated, two side mirrors and one inside mirror

Tire and Rim: 23×10-14，6PL off-road tire，14×7 inch aluminum alloy rims

Lights and Signal: Front and rear lights Turning lights Brake lights electrical horn

Frame: Made with Q23 high quality iron steel and finished with galvanize coating

Steering System: Self Compensating Rack & Pinion Steering

Brake System: Rear Wheel Mechanical Drum Brake and Regeneration Brake

Suspension: Multi leaf spring and hydraulic bumper

Driving System: Rear two wheels driving

Rear Axle: speed ratio 12.4:1

Capacity: 4 Passengers

Gross Weight: 1411LBS (with lead-acid battery)

Overall Size（LXWXH）: 109″ * 50″ * 75″

Max. Speed: 18 m/h

Range: 50-62 mile

Charging Time: 6-8 hours

Turning Radius: 3.5 m

Climbing Capacity: 30%

Minimum Brake Distance: 3.5m
